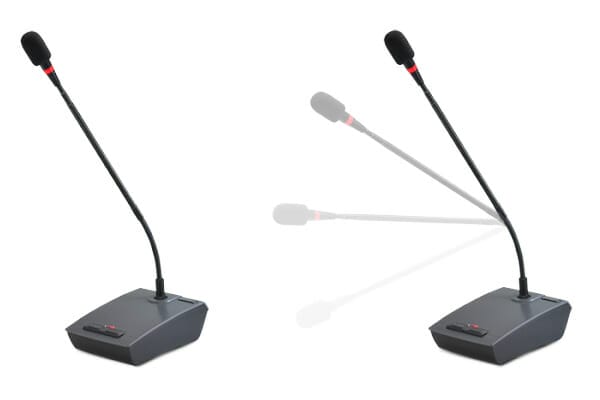

Discussion & Delegate Microphone Systems Hire
Conference and discussion systems provide an individual microphone and loudspeaker to each delegate ensuring everybody taking part in a meeting is clearly heard.
They add structure to a meeting, promoting interactive discussions while allowing the chairperson to control the flow of the meeting.
Chairman priority
Priority button for chairman’s temporary or permanent muting of delegate microphones.
Easy set up
Power & Audio are run in/out the units, from one cable for neat install.
Push to talk
Each unit has a push-to-talk button with live LED indicator.
One Audio-out
A TRS 1/4″ can feed all Microphones to a PA system.
Flexible system
Easy linkable delegate system hire in Edinburgh.
| Feature | Specification |
|---|---|
| Microphone type | Uni-directional condenser |
| Impedance | 680Ω |
| Max input SPL | 100dB for 1% T.H.D |
| Frequency response | 80Hz – 16KHz |
| Sensitivity | -50dB±3dB |
| S/N ratio | ≧ 60dB |
| T.H.D. | < 0.5% |
| Audio input | RJ45 x1 |
| Audio output | RJ45 x1 |
| Power supply | 15V / 4.3A |
| Dimensions (mm) | 110 x 162 x 479 |
| Weight (g) | 747 |
